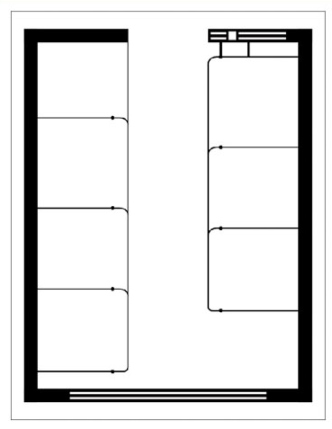

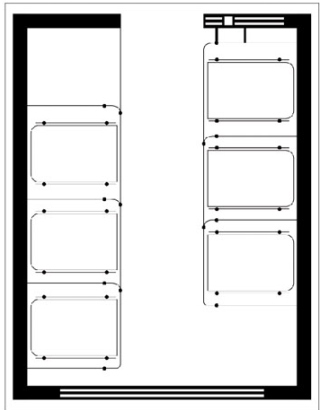

Typical Layout Hospitals/Clinics
Typical Methods of Installations
High Quality Aluminum Alloy / Powder Coated Finish
Combining mechanical strength of heavy Aluminium Alloy and smart designing process, you are assured with smoothest, safest, strongest performance of our hospital cubicle track systems. These features & the demand of our track have increased our acceptability at various major hospitals all over India.
• “i-Traack” Cubicle Track System is made of High Quality Aluminium Alloy.
• Medically Approved white powder coatedwith Anti - Bacterial Finish (Standard)
• “i-Traack” is long-lasting, highly stable, durable and LOW COST.
• It’s slim, stronger and yet elegant in look.
| Sr.No | Parameter | Materials Details. |
|---|---|---|

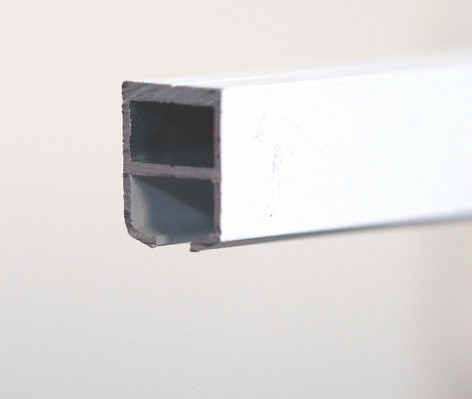

| 1 | Track Material | Cubicle Tracks Comprising of Aluminum Alloy (6063-T6). |
| (a) | All Corner profile | radius of 11 inch |
| (b) | Powder Coating | 60-70 micron white powder coating with seven stage processes with Corrosion Resistance Anti – Bacterial Finish. |
| 2 | Track Size | |
| (a) | Height | 27mm. |
| (b) | Width | 20mm. |

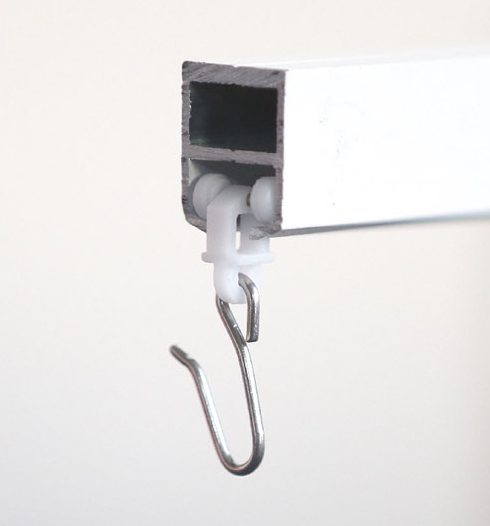

| 3 | Runner Type | Wheel Type Roller Runner. |
| 4 | Runner Material | Plastic HD, Deralin with SS 304 Hook. |
| 5 | Hooks | SS 304 |
| 6 | Bends | Tracks are bendable to a radius at 90 & 135 degree. |
| 7 | Support Units | |
| (a) | Roof Suspenders | Aluminum pipe of 12.2-12.5mm diameter |
| (b) | Wall Supports | Aluminum/ABS white power coated. |
| (c) | Bridge Clamp | Aluminum white power coated. |
